10 years factory 2 zones MINI conventional wireless fire alarm system

FOB Reference Price:Get Latest Price
$1.00 - $80.00 / Pieces | 500 Piece/Pieces (Min. Order)
Type:
Conventional Panel
Lead Time:
Quantity(Pieces) 1 - 3000 >3000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 3000 Pieces)

More

Graphic customization (Min. Order: 3000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YANJEN
Model Number:
YJ-1002
Product name:
Fire alarm system
Power:
AC90-270V
Color:
Red
Certificate:
CE CCC
Housing:
Stainless steel
Max detectors:
30
Zones:
2
Dimension:
205*258*81(L*W*D)mm
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Individual gift box for each unit, 1pcs per carton(22.5* 28* 10.5cm), 2.5kgs per carton.
Port
Shenzhen Port
Lead Time :
Quantity(Pieces) 1 - 3000 >3000
Est. Time(days) 15 To be negotiated
Product Description
Model
YJ-1002
Primary AC
90-270VAC 50/60 Hz
Power supply rating
3 Amps @ 24VDC
ALARM&FAULT Relay rating
2A & 30VAC, resistive
Normal Initiating Operating Voltage
23VDC, Maximum 26VDC, regulated
Minimum Battery Size 2 x 12V
7
Detector Voltage (V DC)
20
Number of Sense Zones
1 to 16
Maximum Number of Detectors
30
Firing Resistance (Ohms)
510 ± 200
Sense Zone End of Line (Ohms)
4k7
Sounder Voltage (V DC)
27
Number of Sound Zones
2
Maximum Sound Current per Zone
500mA
Max. Number Sounder of per Zone
5
Alarm Zone End of Line (Ohms)
10k
Max. Auxiliary Supply Current in Fire (mA)
500mA
Panel Weight [Without Batteries]
2.2Kgs
Panel Dimensions (mm)
205*258*81(L*W*D)
Related Products

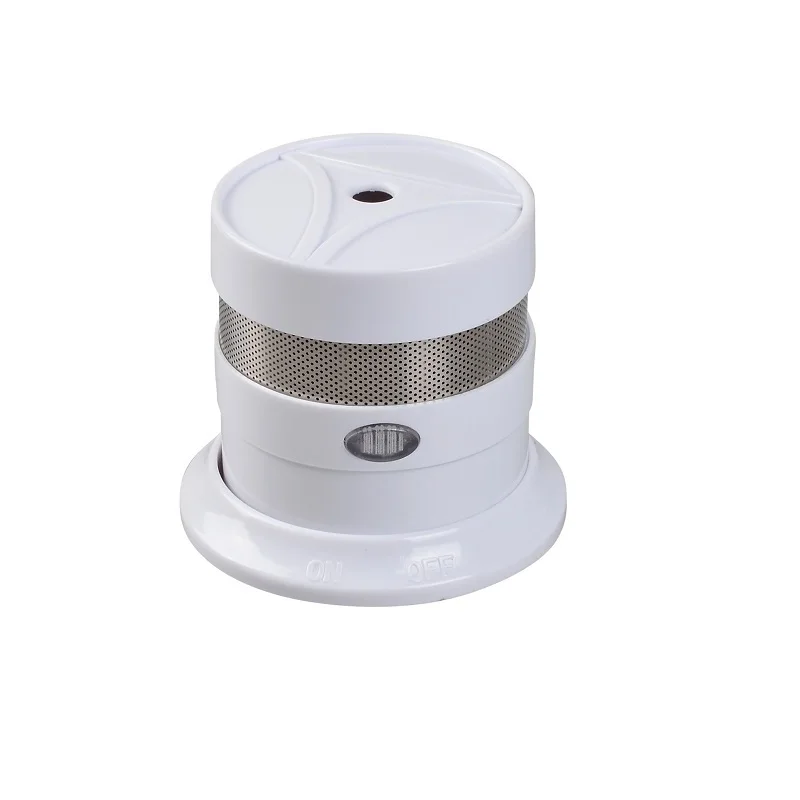

                smoke detector


               smoke detector

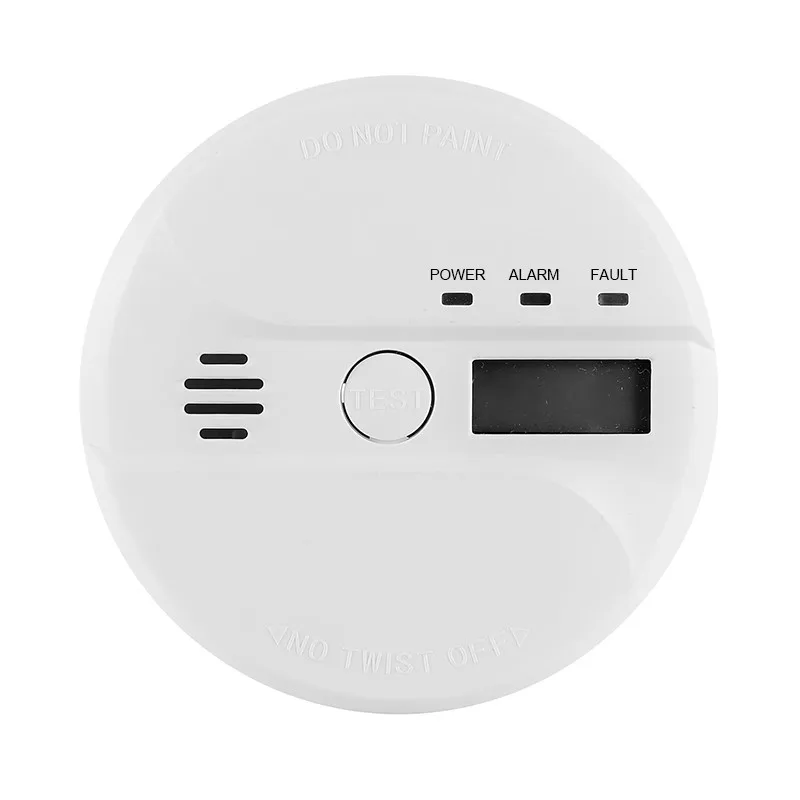

          carbon monoxide detector


Our Company

1. With 10 years of export experience.
2. Professional team in each department.
3. Professional test equipment.
4. International and domestic certificate.

Certifications
Packing & Delivery
Mode NO
YJ-1002
Carton Size
22.5* 28* 10.5(L*W*D)cm
Qty / Ctn
1PCS
GW / Ctn
2.5Kgs

Delivery

With 10 years experience in this field, we now have long term cooperation partner in internation express, air transportation, ocean shipping etc. We are expecting to provide valuable information to our honored clients.

FAQ

1. Do you worry about our company?
--Definitely not ! 10 years company, welcome company visit once we confirm the meeting.
Alibaba also has verified all our information and offers a guarantee.
2. What is the single most important thing you can do when it coms to fire safety in your home?
-- All experts agree that without a doubt, the most important step to take is to make sure you have working smoke detectors installed.
3. Why do you choose YANJEN ? Any advantages?
-- The answer is Yes. There are 5 advantages.
(1) All our products has produced agaist ISO standards,and some owns UL, EN certificates etc.
(2) Customize: We have strong R&D team, which can make the customized product as your request.
(3) Free OEM service: (a) Silk-printing your Logo(≥1000PCS). (b) Design yourcolor box(≥3000PCS).
(4)Mix order : We accept mix order, different model and small quantity order.
(5) After-sale service: (a)2-5 Years Guarantee. (b) If you found any inferior-quality products from us, we will send new ones
to replace for free in your next order after confirmed.
4. Can I order samples to test the quality?
-- Sure.
5. May I have your catalogue and price list for trial order in MOQ quantity ?
-- All our smoke detectors were shown on alibaba, please have a detailed looking and choose the interested models in our
site.
